\(QS5_{4}^{(1)}\)
Description
Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(5\) | \(4221\) | \(111110\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = x \, (-1+x-2 \, y) \\ \dot{y} = 3 \, y \, (1+2 \, x-y) \end{cases}\]

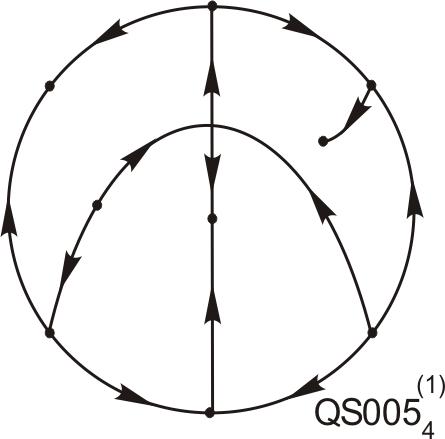

has the following phase portrait done with P4. If you want, you may download the P4 file here.
The phase portrait appears in the following papers
- With name \(Chap 3 7\) in {B. Imane and B. Souad}, Global phase portraits of quadratic differential systems exhibiting an invariant algebraic curve or an algebraic cubic first integral, {Ph.D. Universite Mohamed el Bachir}, (2020).
- With name \(3,1(b1)\) in {D. Schlomiuk and N. Vulpe}, Global classification of the planar Lotka--Volterra differential systems according to their configurations of invariant straight lines, emph{J. Fixed Point Theory Appl.}, { bf 8}, no. 1 (2010), 177--245.
- With names \(Fig. 39 h\) and \(Fig. 40 b\) in {J. Llibre and C. Pantazi}, Global phase portraits of the quadratic systems having a singular and irreducible invariant curve of degree 3. Internat. J. Bifur. Chaos Appl. Sci. Engrg. 33 (2023), no. 1, Paper No. 2350003, 54 pp.
- With name \(U^1_{D33}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With name \(V17\) in {J. C. Artés, J. Llibre and D. Schlomiuk}, The geometry of quadratic polynomial differential systems with a weak focus and an invariant straight line, emph{ Internat. J. Bifur. Chaos Appl. Sci. Engrg.}, textbf{20}, no. 11 (2010), 3627--3662.
- With names \(Fig 2A VIII\), \(Fig 2A X\), \(Fig 2B VIIc\) and \(Fig 2D Xia\) in {J. W. Reyn}, Phase portraits of a quadratic system of differential equations occurring frequently in applications, emph{Nieuw Arch. Wisk. (4)}, textbf{5}, no. 2 (1987), 107--151.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS5_{3}^{(0)}\) and \(QS5_{6}^{(0)}\).
Comments
This phase portrait appears in J. C. Artés, J. Llibre and D. Schlomiuk (emph{ Internat. J. Bifur. Chaos Appl. Sci. Engrg.}, textbf{20}, no. 11 (2010), 3627--3662) featuring a weak focus of first order. Consequently, a configuration structurally equivalent to \(QS5_{4}^{(1)}\) could potentially exhibit an additional limit cycle bifurcating from the focus.
